INVENTORY
STAGES
All stages have a wind resistance of 115 mph without wind walls 77 mph with wind walls. Wind walls are fire retardant with weather proofing on 3 sides.
SL260
32′ x 24′
Roof Rigging Capacity: 18,500 lbs
SL320
40′ x 40′
Roof Rigging Capacity: 26,000 lbs
Optional Video Gantry: 24′ x 25′ 6,000 lbs
SAM450
44′ x 38′
Roof Rigging Capacity: 66,000 lbs
Covered Wings Option: 16′ x 16′ or 16′ x 32′
LED Screen Rigging Capacity:
Lateral Screen – 20′ x 27′ 10,000 lbs
Upstage Screen – 40′ x 20′ 8,000 lbs
Header Screen – 4,000 lbs
Trim Height: 27′
SAM575
50′ x 38′
Roof Rigging Capacity: 94,000 lbs
Upstage Crossover: 76′ x 12′
Covered Wings Option: 20′ x 40′
LED Screen Rigging Capacity:
Lateral Screen – 22′ x 31′ 12,000 lbs
Upstage Screen – 48′ x 24′ 10,000 lbs
Header Screen – 5,000 lbs
Trim Height: 33′
SAM750
70′ x 56′
Roof Rigging Capacity: 152,000 lbs
Upstage Crossover and Ramp: 129′ x 14′
with a 8′ x 50′ hydraulic ramp
Covered Wings Option: 28′ x 56′
LED Screen Rigging Capacity:
Lateral Screen – 25′ x 53′ 25,000 lbs
Upstage Screen – 60′ x 40′ 40,000 lbs
Header Screen – 12,000 lbs
Trim Height: 52′
RIGGING
MOTORS
TRUSS
POWER DISTRIBUTION
RIGGING HARDWARE
ANCILLARY

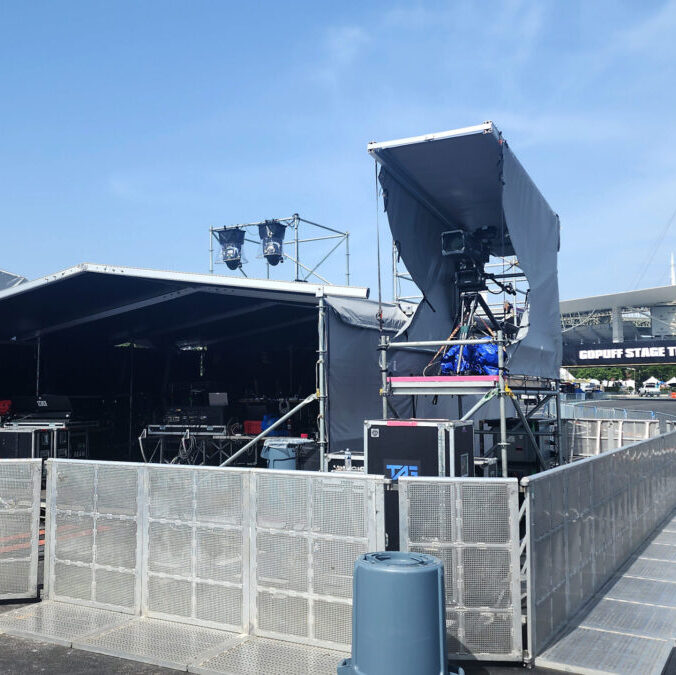

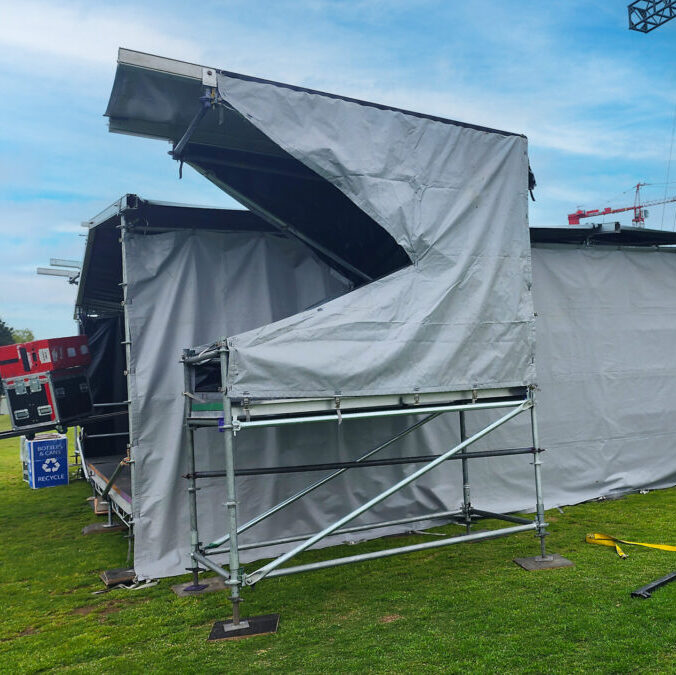

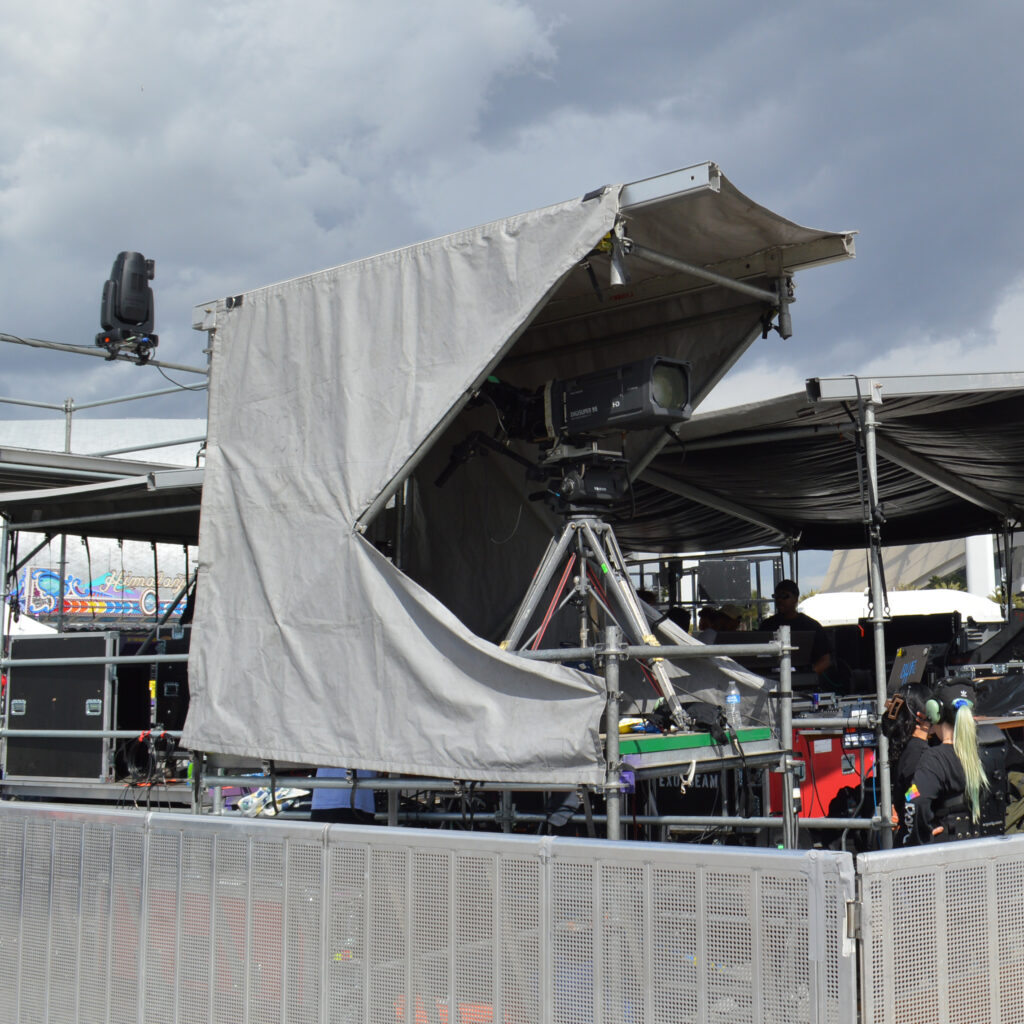

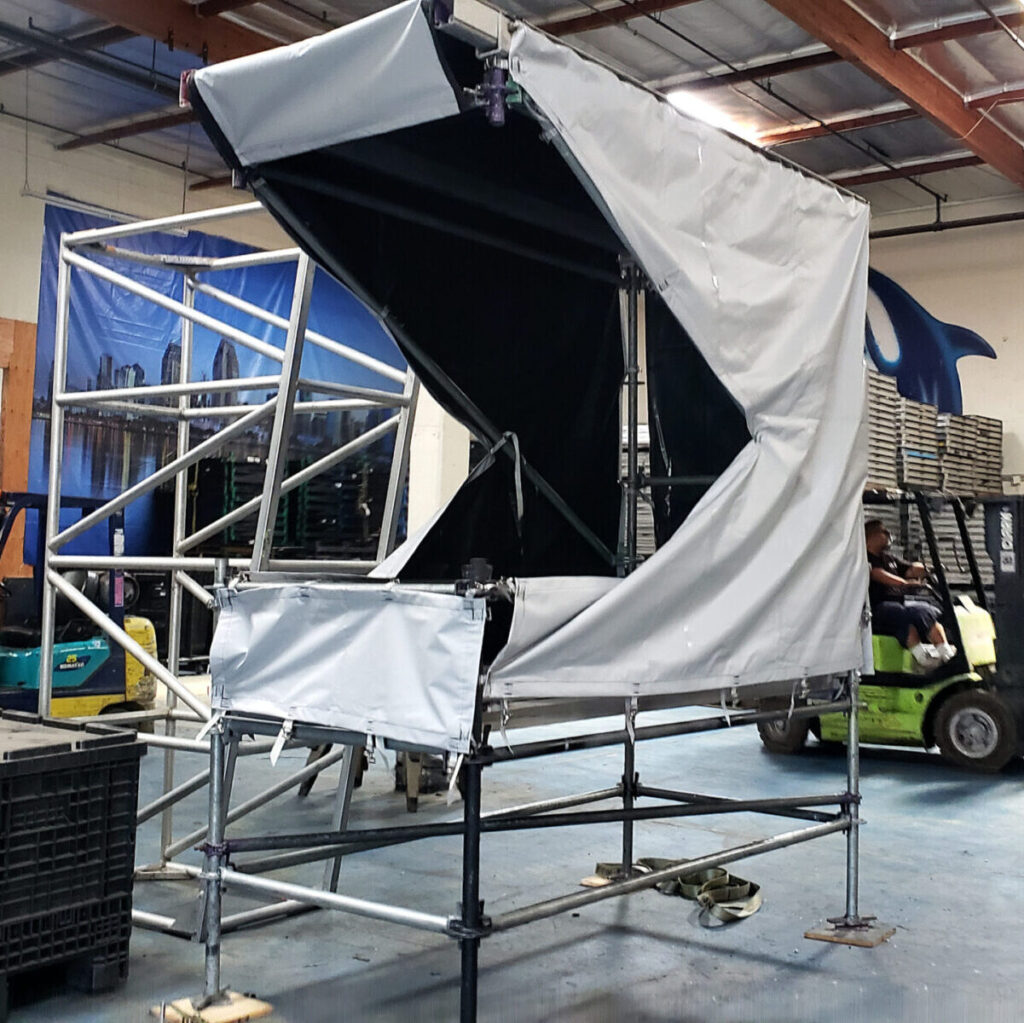

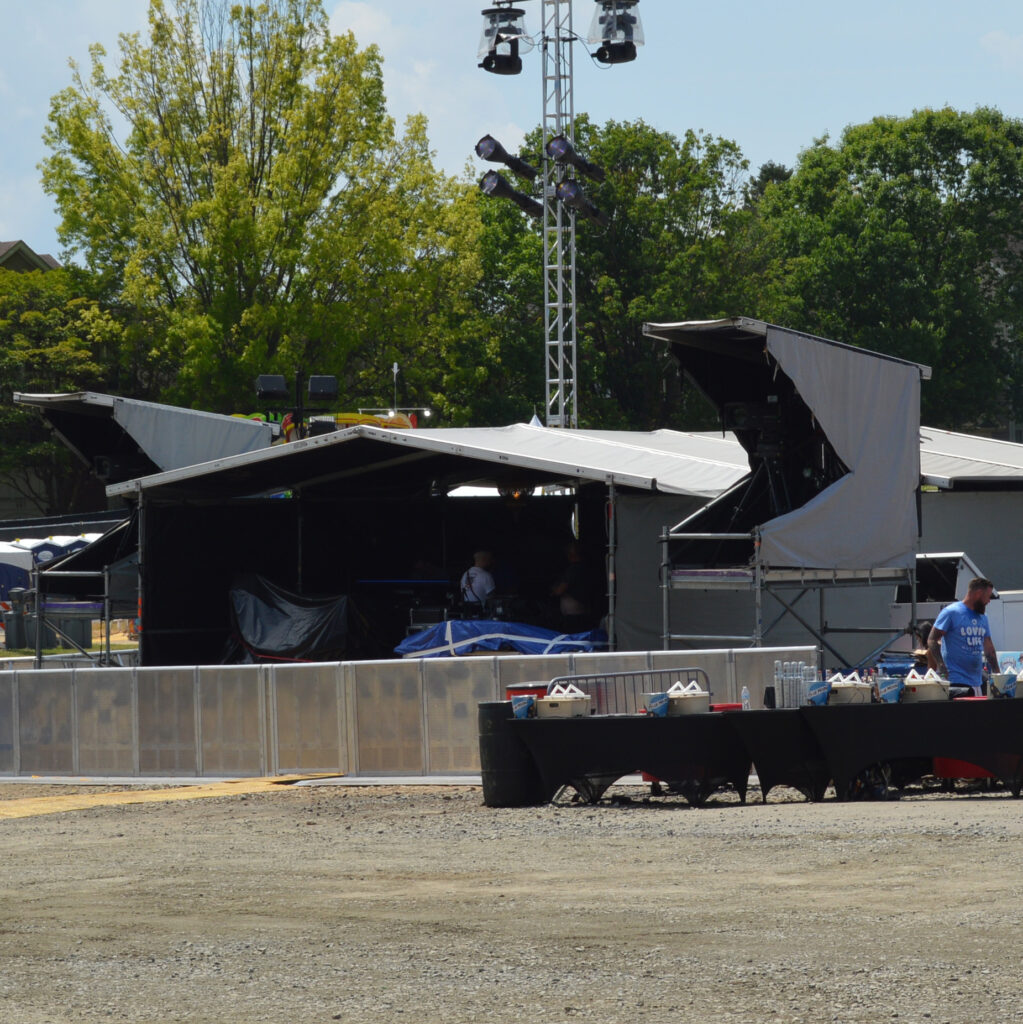

CAMERA RISERS

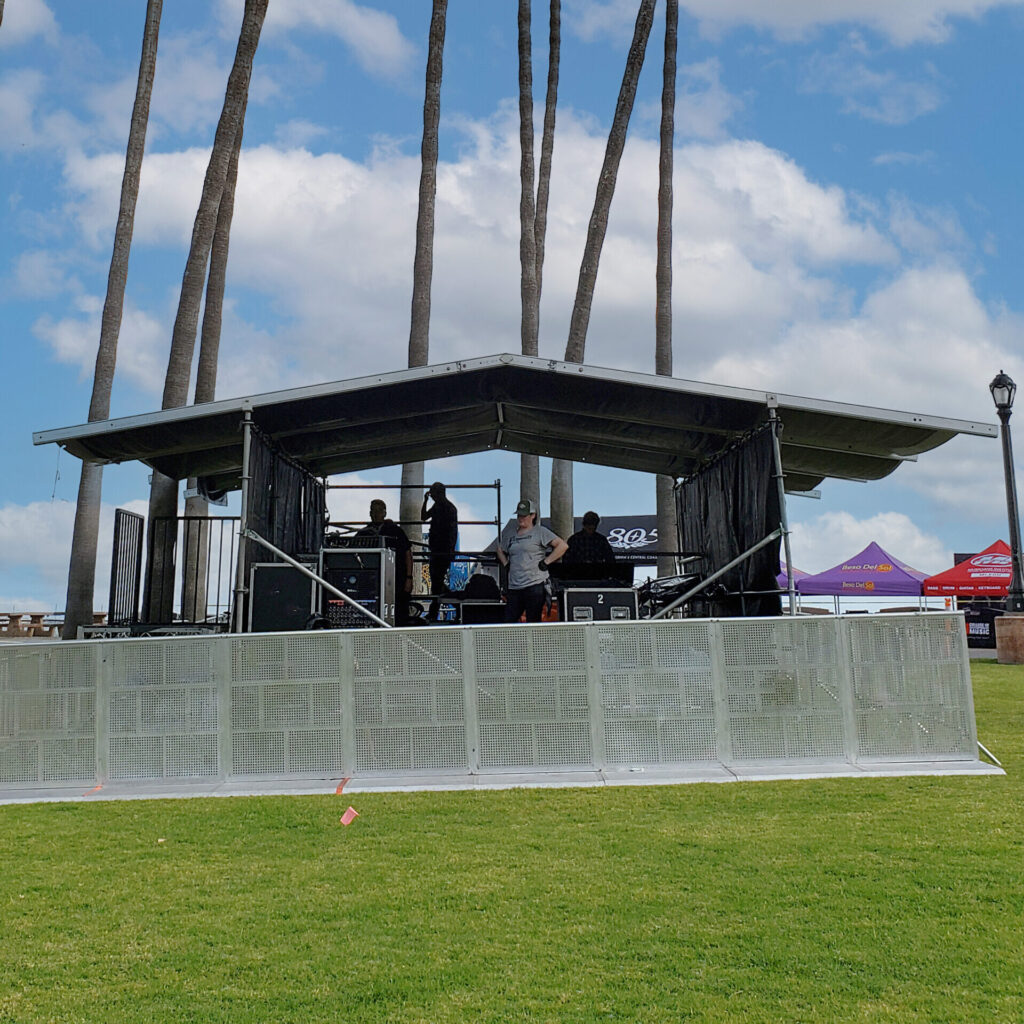

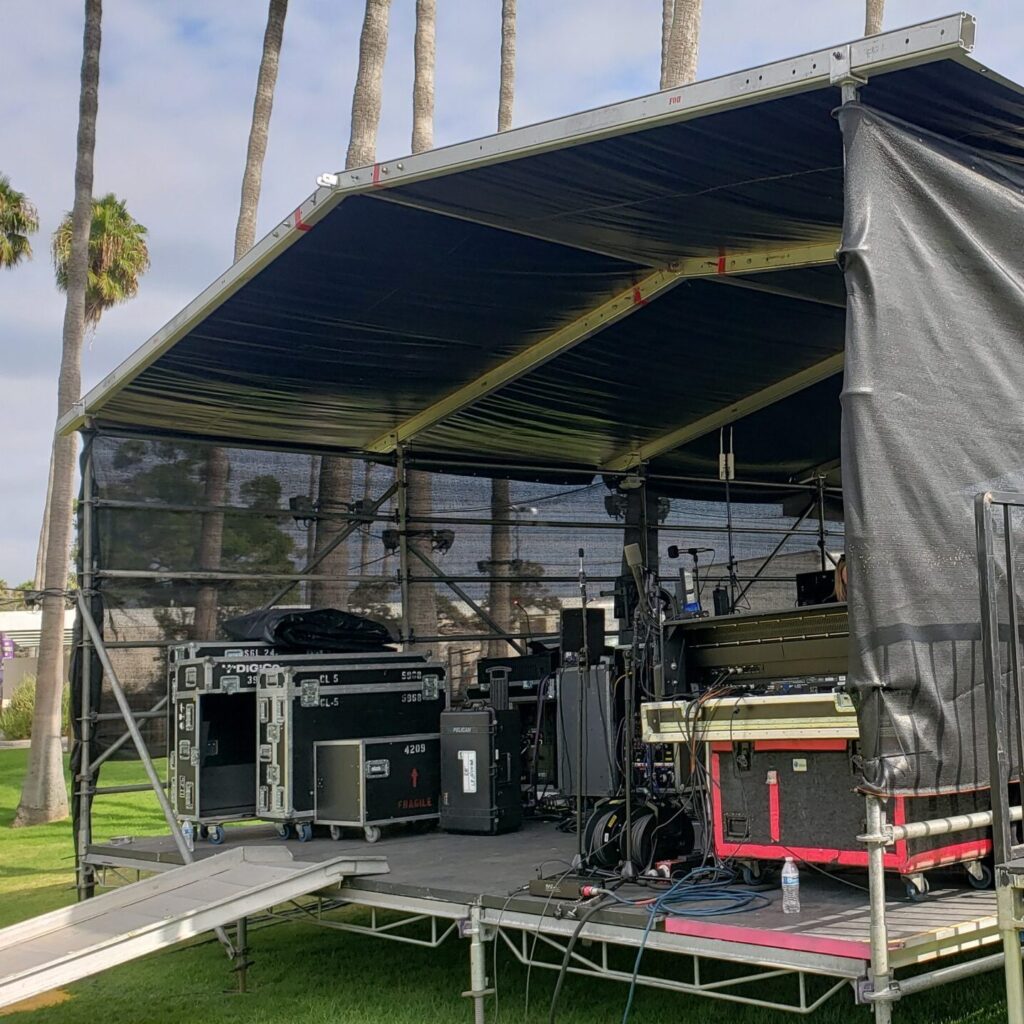

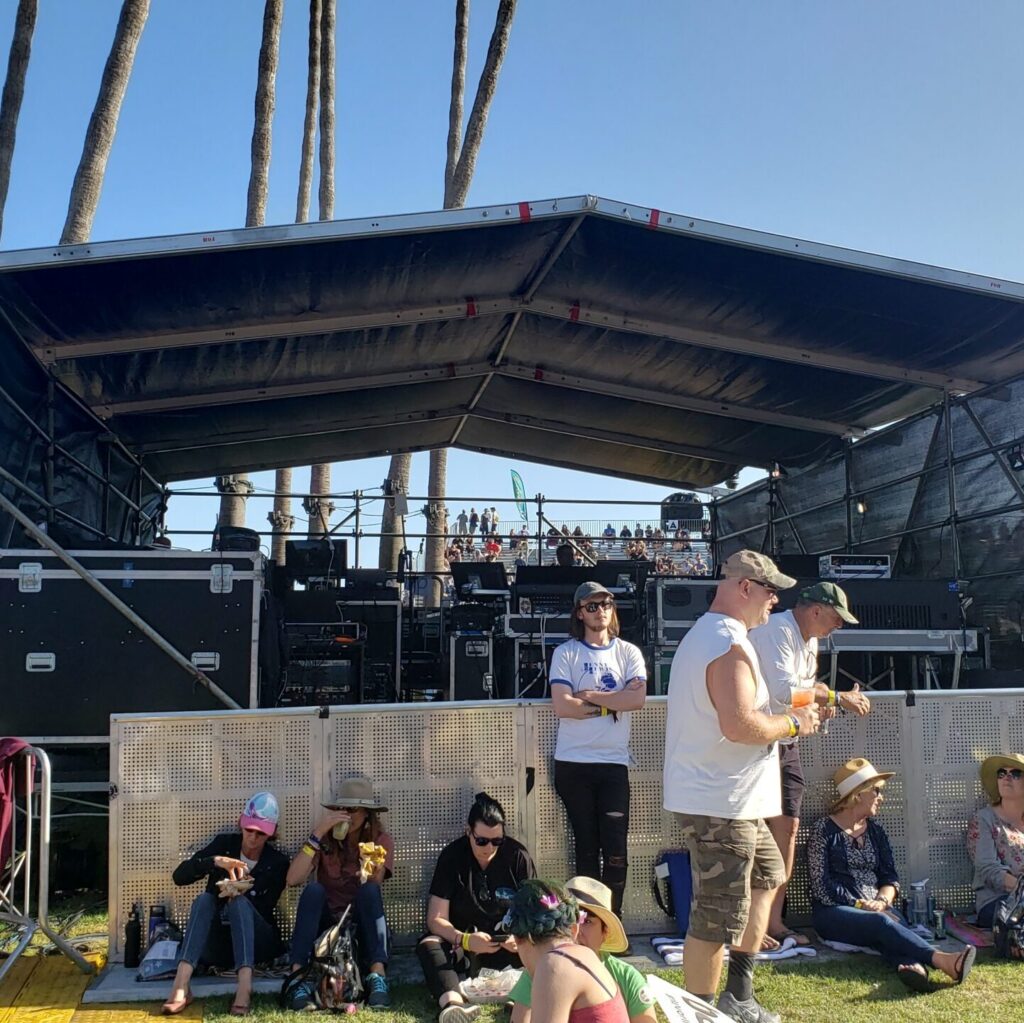

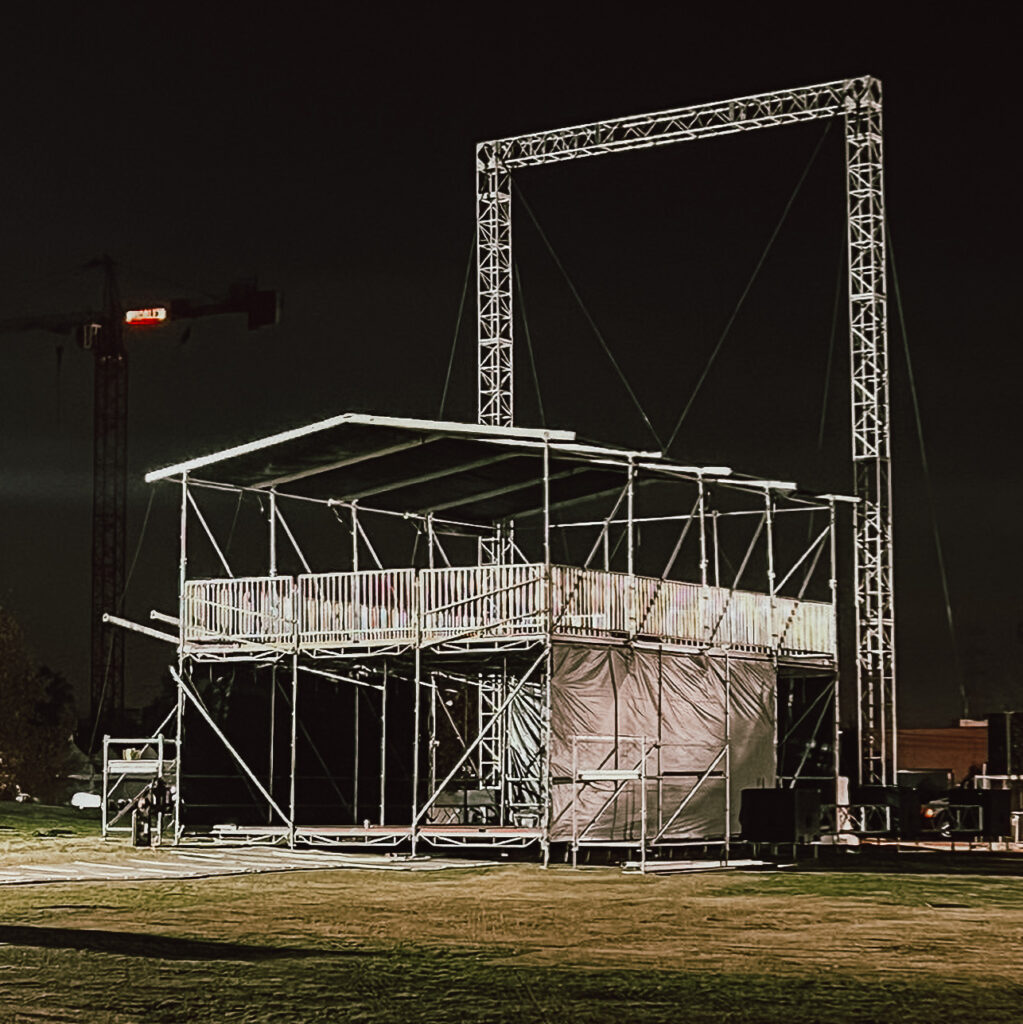

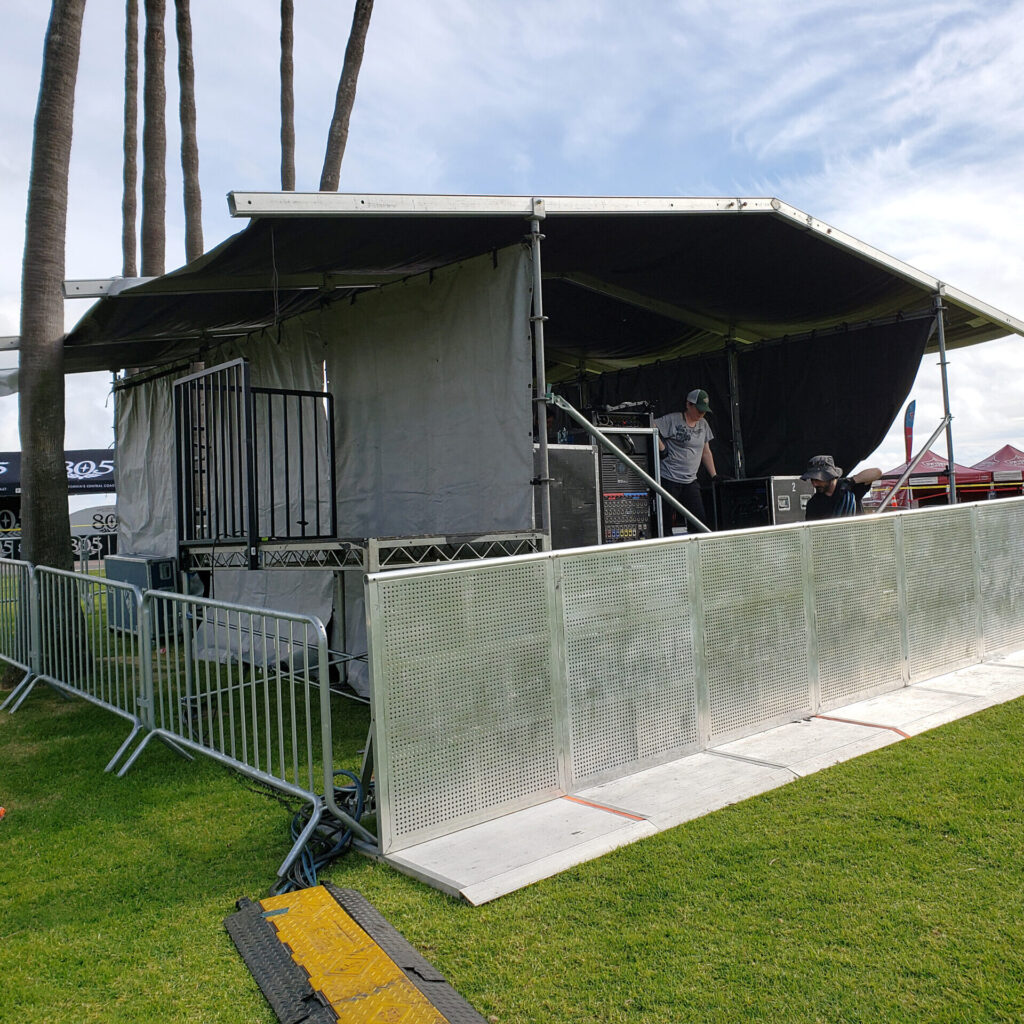

FOH STRUCTURES
LOADING DOCKS
PLATFORMS
